Hydrogen Detector and Hydrogen Monitor

KHD10TR3 Datasheet

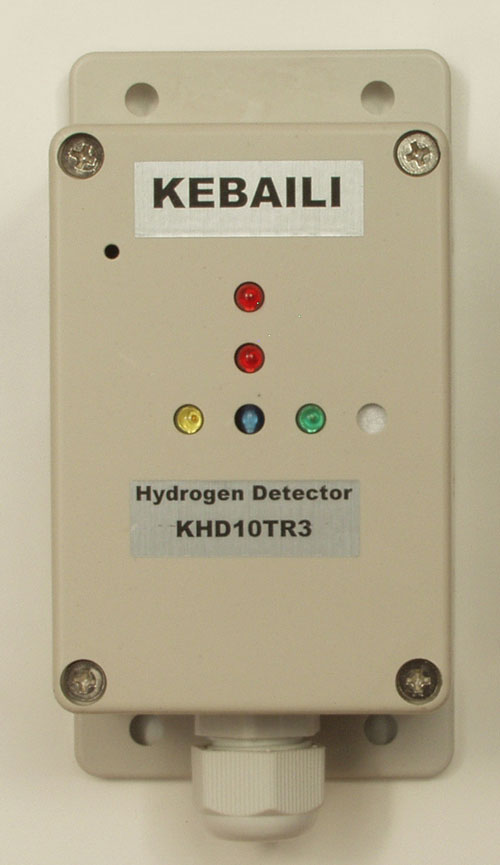

The KHD10TR3 is a member of the KHD10T Series of hydrogen gas monitors, it is identical in functionality to the KHD10TL1, except that it uses a remotely installed MEMS hydrogen gas sensor, and a 12 VDC universal input AC adapter for power supply. The KHD10TR3 is a complete standalone fixed hydrogen gas detector and monitoring system, that is powered by a 12 VDC output. universal AC input adapter (100 to 240 VAC, 50/60 Hz).

The hydrogen gas sensor is remotely installed up to 7.6 m (25 feet) away from the KHD10TR3 hydrogen gas detector.

ACCESSORIES FOR KHD10TR3

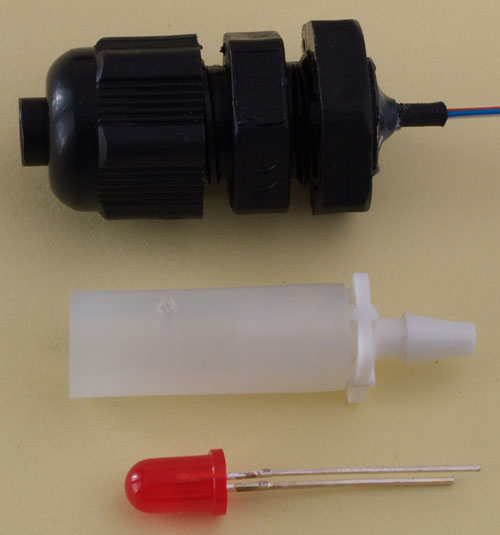

KHS151 External Hydrogen Gas Sensor.

KCC10 Calibration Cup Adapter.

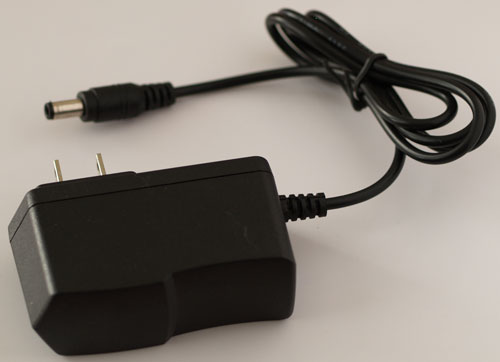

KAC10 Universal AC Adapter - (12 VDC).

KAC15 Universal AC Adapter - (12 VDC).

ORDER CONTENT

KHD10TR3 - Fixed Hydrogen Gas Detector.
KHS151 - External Hydrogen Gas Sensor.
KCC10 - Calibration Cup Adapter.
KAC10 - Universal AC Adapter - (12 VDC).

Hydrogen Gas Detector - KHD10TR3 - Remote KHS151 Hydrogen Gas Sensor & Universal AC Input Adapter - 12 VDC
