4-20 mA analog output is not available on the KHD10TL1a

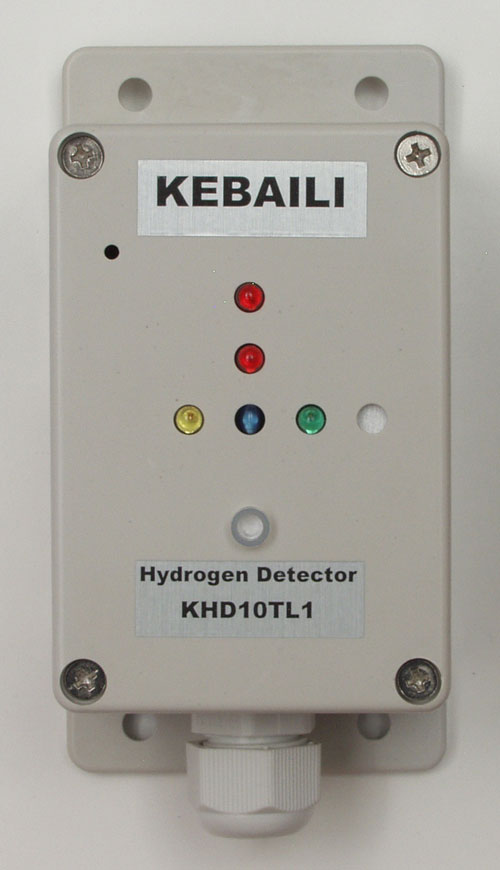

The KHD10TL1a has same functionality as the KHD10TL1 hydrogen gas monitor, except that it does not have a 4-20 mA analog output. The KHD10TL1a is a complete standalone fixed hydrogen gas detector and monitoring system, that is powered by a constant voltage source from 12 to 35 VDC.

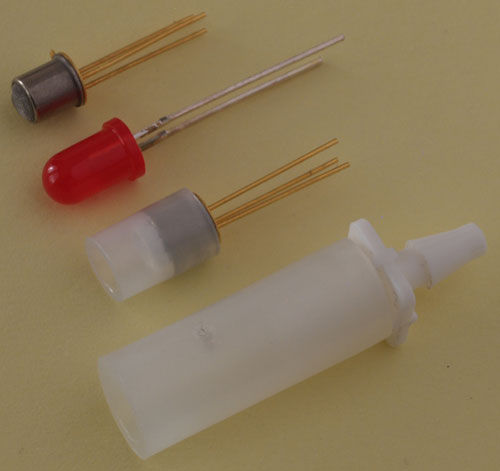

The KHS150 hydrogen gas sensor is a MEMS-based micropellistor sensor, it is user replaceable, and it is internally mounted inside the KHD10TL1a hydrogen gas detector.
ACCESSORIES FOR KHD10TL1a
KCC10 Calibration Cup Adapter.
- KHD10TL1a - Fixed Hydrogen Gas Detector.
- KHS150 - Hydrogen Gas Sensor.
- KCC10 - Calibration Cup Adapter.
