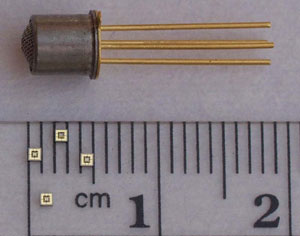

KHS-100 Hydrogen Sensor is a micromachined silicon based micro-sensor packaged in a standard 4-pin TO18 style package with a metal cap and metal mesh filter. KHS-100 detects hydrogen gas in the range of 0-100% LEL.
Sensor Principle: Sensor surface conductivity modification with adsorption of hydrogen. High selectivity to hydrogen. No cross sensitivity to methane.
SPECIFICATIONS
- Temperature and humidity compensated sensor.
- Supply voltage constant 2.7 Volts
- Sensor: Micro-machined silicon MEMS sensor.
- Range: 0-100% LEL
- Response time: 15 seconds
- Power 25mW max.
- Temperature range: 32°F to 122°F {0°C to 50°C)
- Humidity range: 5% to 95% RH (non-condensing)
|
