HYDROGEN GAS DETECTOR

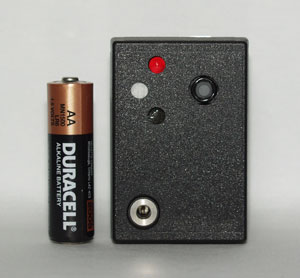

Model KHD-100 hydrogen gas detector is based on our micromachined silicon MEMS hydrogen sensors.

Model KHD-100 comes with an AC adapter/charger and a cigarette lighter adapter/charger for recharging the built-in Ni-MH battery pack. Model KHD-100 can be used continuously with the AC adapter or the cigarette lighter adapter.

SPECIFICATIONS

• Microcontroller based design
• Impact resistant ABS case
• Easy one-button operation
• Continuous full function self-test on activation
• Audible, visual, and vibrating dual alarm indicators.
• Sensor failure and low battery alarm indicators.
• Temperature and humidity compensated sensor.
• 50 hours of continuous operation on a single full charge.
• Intrinsically safe design.
• Size:                             0.86” x 1.64” x 2.43” (22 x 42 x 62 mm)
• Weight:                         3 oz. (86 g)
• Case:                            Rugged, high impact ABS case.
• Sensor:                         Micro-machined silicon MEMS sensor.
• Range:                          0-100% LEL
• Response time:             15 seconds
• Alarm levels:                 Dual alarms factory set at 25% and 50% LEL.
• Battery:                         Built-in Ni-MH rechargeable 3.6 Volts battery pack.
• Temperature range:       32°F to 122°F {0°C to 50°C)
• Humidity range:             5% to 95% RH (non-condensing)
• Warranty:                     One year materials and workmanship.
