HYDROGEN SENSOR - KHS-EVAL-S-LEL

KHS-EVAL-S-LEL
click to see larger image
Name: KHS-EVAL-S-LEL
Your Price:
$299.00


Add product to your shopping cart
KHS-EVAL-S-LEL KHS-EVAL-S-LEL KHS-EVAL-S-LEL




Hydrogen Sensor - KHS-EVAL-S-LEL  Datasheet

KHS-EVAL-S-LEL detects hydrogen gas in the range of 0 to100% LEL (0 to 40000 PPM or 0 to 4% hydrogen by volume in air).

Sensor detection Principle:  microcatalytic oxidation reaction of hydrogen.

High selectivity to hydrogen, and no cross-sensitivity to methane.

KHS-EVAL-S-LEL has an analog voltage output from 0 to 2 V that is proportional to the hydrogen concentration from 0 to 100% LEL.


SPECIFICATIONS



  • Temperature and humidity compensated sensor
  • Supply voltage:            constant DC voltage from 4.5 V to 9 V
  • Sensor:                       KHS-200 MEMS micropellistor
  • Range:                        0-100% LEL
  • Response time:            1 s
  • Recovery time:             2 s
  • Power consumption:      150 mW (30 mA with 5 V DC supply).
  • Temperature range:       -40°C to 85°C
  • Humidity range:            0% to 100% RH (non-condensing)

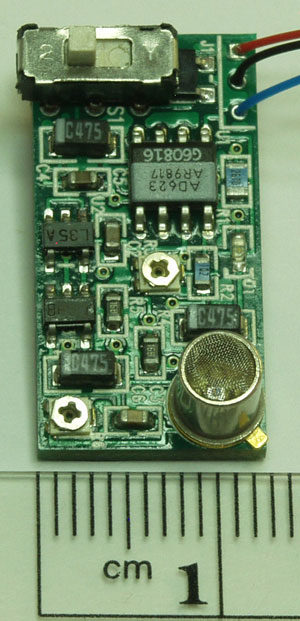

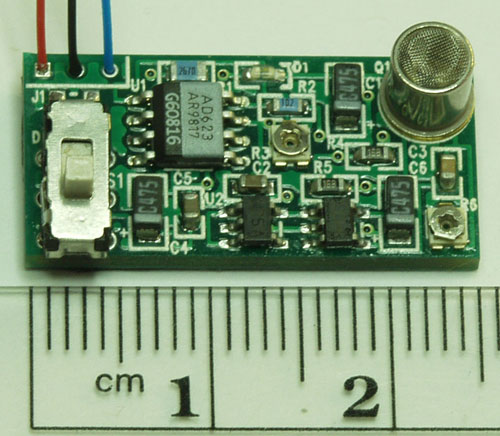

  • Dimensions:                 25 mm x 13 mm (1" x 0.5")
  • Weight:                       2 g (0.07 oz)


FEATURES
  • Low power consumption and easy to use for battery powered operations
  • Reverse battery voltage protection
  • Short-circuit protection

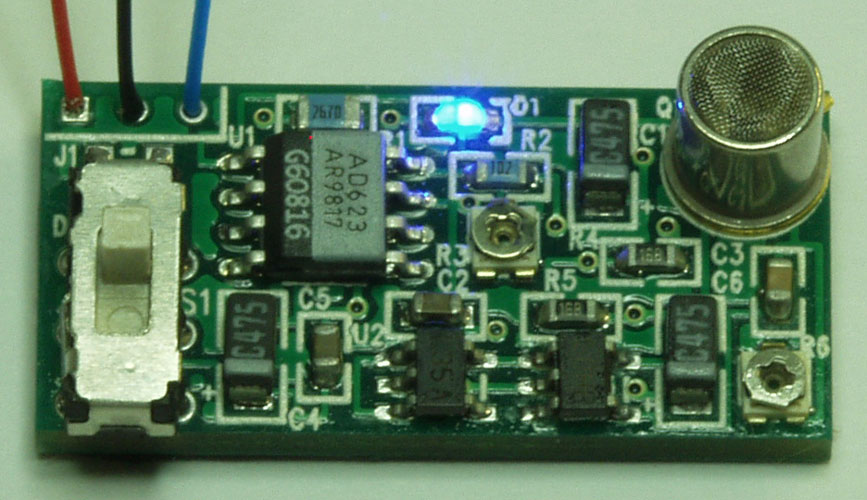

  • Blue color LED identification for 0 to 100% LEL hydrogen detection range
